QUALITY WIRE EDM INC. LINE CARD

WATER JET

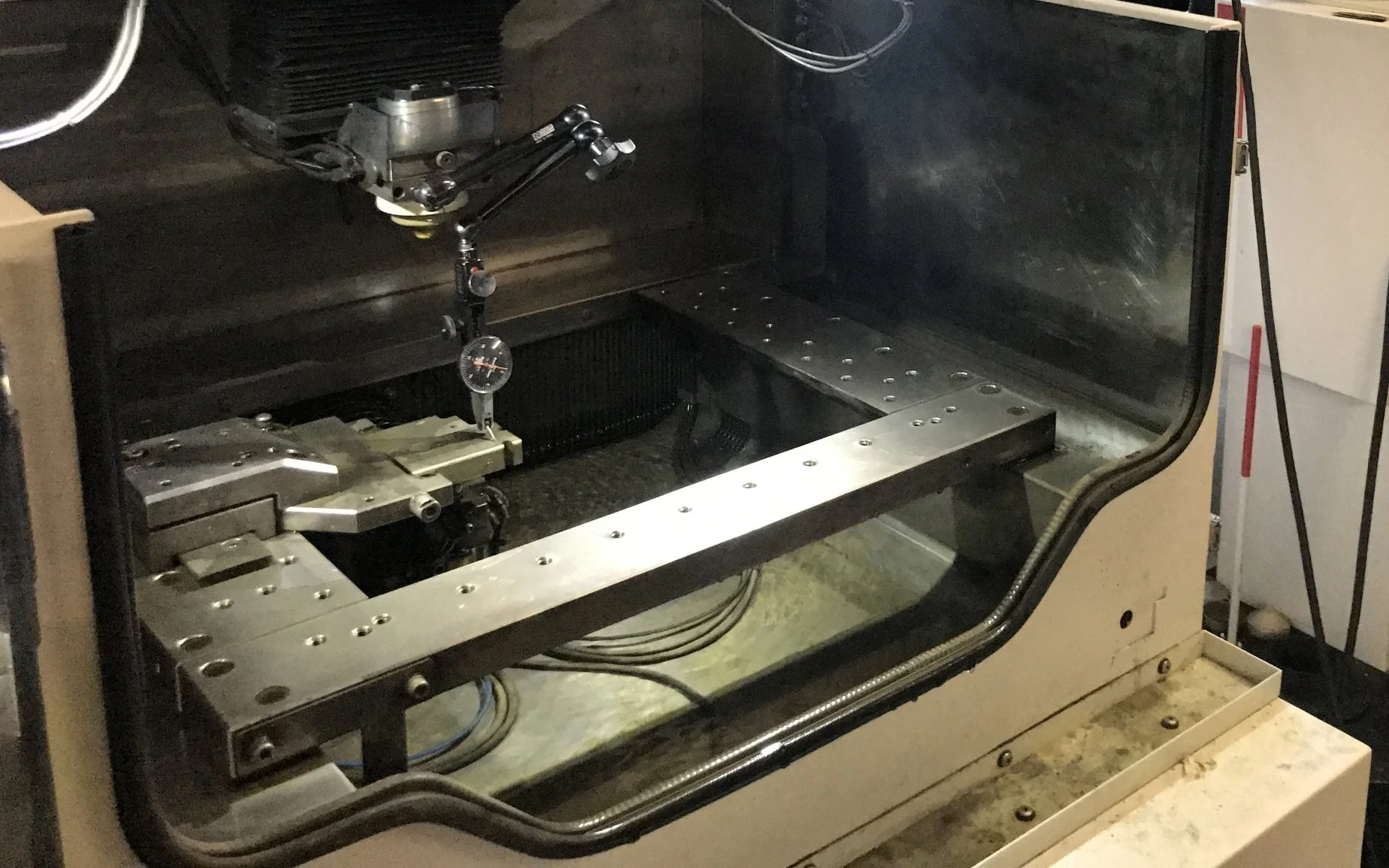

wire edm

  • Max Table Travel: 24"x24"

  • Max Material Thickness:

    • 2.250" for all metallic materials

    • 6" for non-metallic materials

  • Accuracy Within: ± 0.002"

  • Capable of cutting: Steel, Plastic, Rubber, Ceramic, Glass & more.

  • 12 Precision Wire EDM machines

  • Max Z height: 16"

  • Max Table Travel: 20.5" x14.6"

  • Max Taper Angle: 30°

  • Accuracy Within: ± 0.0001"

  • Surface finish as Smooth as 6Ra

3 axis CNC Milling

cnc small hole edm drilling

  • 2 Hurco VMCs with automated tool changing

  • 1 Hass VM2 with automated tool changing

  • Max Table Travel: 47" X 18"

  • Max Z Height: 18"

  • Max Table Load: 1,200lbs

  • Max Table Travel: 23.6" X 15.8"

  • Max Z Height: 15.8"

  • Electrode Diameter: 0.004" - 0.250"

  • Accuracy Within: ± 0.0005"

  • Automatic Electrode Wear Compensation for precise hole depth

  • Automated Modular EDM Machining

CONVENTIONAL (RAM) EDM

cnc & Manual knee milling

  • 2 precision conventional EDM machines

  • Max Table Travel: 29.1" X 18.5"

  • Max Work-piece Weight: 550lbs

  • Precise Indexing, Orbiting and automated tool changing

  • Accuracy Within: ± 0.0002"

  • Satin & Glossy EDM finish

  • 3 Knee Mills

  • Prototrak 2 axis CNC controls with 3 axis DRO

  • Max Travel X-Y-Z: 32"x16"x4.9"

  • Table Size: 50" X 10"

spring & coil winding

power press & stamping

  • 4 BHS Torin Spring Coilers

  • Wire Diameter Range 0.005" - .085"

  • Spring Grinding

  • Spring Heat Treat Oven

  • 3 15 Ton Presses

  • 1 45 Ton Power Press

  • 1 60 Ton Power Press

  • #1 & #1SF Four Slide

  • 6 Kick-press Stations



support equipment

  • LaserStar Fiber Laser markeing sytem

  • Arbor Press

  • Econoline Sandblasting Machine 24″ X 24″ X 36″

  • Vibratory Tumbler

  • (2) Tool Room Lathe

  • DoAll Manual Jig Grinder

  • Parts Washing Station

  • (2) Heat Treating Oven

  • (3) Surface Grinder

  • (2) Wet Grinder 12x24" capacity

  • (2) Belt Sander

  • DoAll Drill Press

  • DoAll Band Saw

  • Dake Cutt-off Saw

  • Branson Heating Ultrasonic Cleaner

  • (2)Tumbling Station

inspection & Quality Control

  • Mitutoyo Microscope

  • Assorted; Micrometers, Calipers, Pin Gages, Gage Blocks,Dial Bore Gages, Sine Plates, and Deltronic 0.0001" Pin Gages

  • Various Hermann Schmidt Inspection Gages

  • Marsurf PS 10 Profilometer

  • (2) Deltronic 10" Comparator

  • Tesa 400 Micro-Hite

  • Fowler DCC CMM

  • Rockwell Hardness Tester

  • (7) Granite Surface Plate

  • (2) Mitutoyo Digital Master Height
